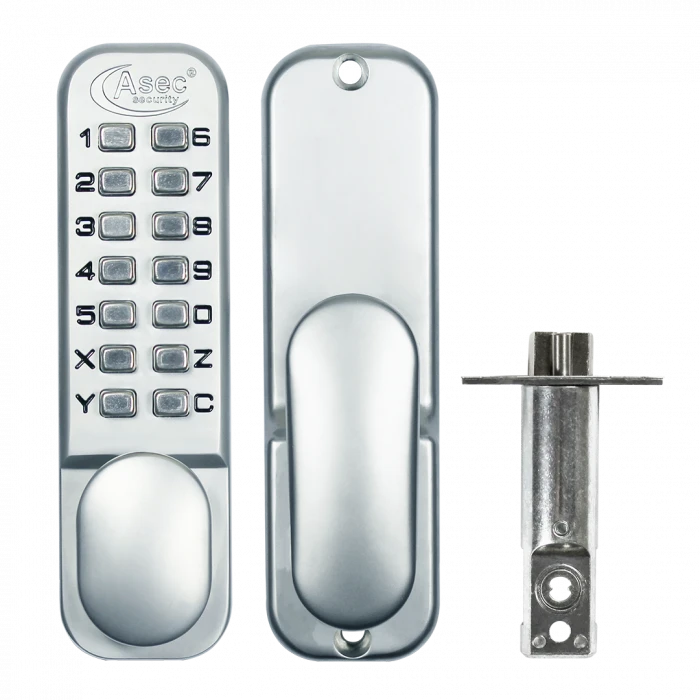

ASEC AS2300 Series Digital Lock Optional Holdback

Features:

• 1000+ combinations
• For internal or external applications
• Simple installation
• Optional holdback
• Suitable for 35-60mm thick doors
• Supplied complete with tubular latch and fixings

Technical Specification:

• Operation  Outside – Thumbturn On Entry Of Code
• Operation Inside – Thumbturn Free Exit
• Passage Set – No
• Width – 41mm
• Code Length – 4 To 7 Digits
• Combination – 1,000+
• Case Depth Required – 80mm
• Finish – Satin Chrome
• Door Thickness – 35mm to 60mm
• Brand – Asec
• Weight – 1Kg
• Barcode – 5055120692029
• Backset – 60mm
• Manufacturer Reference – AS2300
• Codes – 1
• Buttons – 14
• Holdback – Yes (Optional)
• Height – 142mm
• Handed – Reversible
• Guarantee – 5 Year
• Latch – 60mm Standard
• Key Override – No
